3003-H14 Pipe jacketing insulation aluminum coil roll manufacturer

2023-10-16 14:35:20

Jacketing insulation aluminum coils have low density, light weight, beautiful appearance; aluminum is not easily oxidized in the air and has a longer service life than other materials. 3003 jacketing insulation aluminum coil roll is a representative product of the 3 series AL-Mn alloy, also called anti-rust aluminum coil. It is mainly used in pipes, building roofs and walls as insulation materials, etc. Flait Aluminum can provide surface types of 3003 jacketing insulation aluminum coil roll: mill finish, smooth, stucco embossed surface finishes, with moisture barrier consisting of polysurlyn and composite kraftpaper. The 3003 insulation jacket aluminum coil produced by Flait aluminum has beautiful and smooth appearance, no oil stain, no color difference, uniform thickness, flat plate without waves; can be well applied to the insulation and packaging of pipes, etc. The common width of aluminum insulation jacketing coil roll is 1 meter, and the thickness is according to the mechanical needs. Generally, the thickness of 3003 thermal insulation aluminum coil is 0.40-1.00mm. In order to facilitate the construction, the thermal insulation aluminum coil is guided from the large coil to the small roll.

3003-H14 Pipe jacketing insulation aluminum coil has good anti-rust and anti-corrosion properties. Because of the addition of manganese, the 3 series thermal insulation aluminum coils are more resistant to corrosion than the 1 series pure aluminum, such as water, atmosphere, gasoline, inorganic salts, and food. Not only that, they are also resistant to the corrosion of acrylic acid, is used for a variety of special environments. 3003 aluminum coil cannot be strengthened by heat treatment, and cold working methods can be used to improve its mechanical properties; it has high plasticity in the annealed state, good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good corrosion resistance, and good weldability, poor machinability.

Pipe jacketing insulation aluminum coil roll

Features of 3003-H14 pipe jacketing insulation aluminum coil roll

  1. Light weight. Calculated to the price per square meter, steel and aluminum are almost the same.
  2. Easy to process and shape, the construction is convenient and fast, reducing the labor intensity of construction workers.
  3. Beautiful appearance, using aluminum jacketing as insulation exterior decoration, bright visual effect is very good.
  4. Good thermal insulation effect, long service life, economical and environmentally friendly. Because aluminum is corrosion-resistant, it generally will not corrode for more than 20 years.
  5. The recycling value of aluminum coils is high. Because of its corrosion resistance, can be recycled at least 80%.

Specification of 3003-H14 pipe jacketing insulation aluminum coil roll

Alloy 3003
Temper H14, H16
Thickness 0.40-1.00mm
Width 914mm, 1000mm, 1200mm, 1219mm, etc.
Length 50′ (15 meters), 100′ (30 meters), 200′ (60 meters), 300′ (90 meters), Coil (specify lengths), Flat Sheets (cut to length), Cut & Rolled (to specific lengths)
Inner diameter 75mm, 150mm, 305mm, 405mm, 505mm with or without paper core
Surface treatment Mill finish, smooth/plain, stucco embossed, corrugated
Moisture barrier Polysurlyn, composite kraft paper
Surface lamination Kraft paper laminated
Kraft paper thickness About 0.1mm
Polysurlyn thickness About 0.076mm (3mil)
Quality standard ASTM B209ISO9001, GB/T3880
Qty. Have ready stock for most common thickness roll small quantity order are acceptable.


Application of 3003-H14 pipe jacketing insulation aluminum coil roll

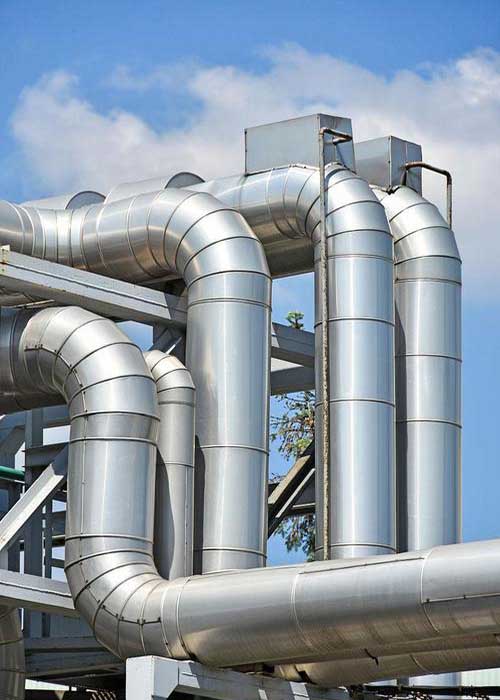

3003 pipe jacketing insulation aluminum coil roll has good corrosion resistance and anti-rust ability and is widely used, especially in pipeline engineering, because pipelines generally live in relatively humid environments. In addition to pipes, it can also be used for exterior packaging, mechanical parts, refrigerators, air conditioning and ventilation ducts, decorative curtain wall panels, and indoor aluminum ceilings.

Why choose our 3003-H14 pipe jacketing insulation aluminum coil roll

  1. Selection of raw materials. Choose reliable large-scale suppliers, purchase key raw materials, and control the quality of jacketing insulation aluminum aluminum coils from the source.
  2. Process advantages. More than 15 years of rich experience, mature technology and high level of workmanship.
  3. Advanced equipment. 3300mm wide “1+1” hot rolling production line; many large-scale equipment, such as straightening, cutting, etc.
  4. Perfect packaging. The packaging of 3003 aluminum coils pays attention to moisture and rain resistance to ensure that the surface of the aluminum coils is intact and without scratches. According to the needs of customers, the jacketinginsulation aluminum coilcan be packaged in whole rolls or divided into small rolls. For the convenience of customers’ construction and use, please inform us in advance.
  5. Competitive price. The origin of raw materials, large-scale production, and direct supply from manufacturers make the products cost-effective.

The price of 3003-H14 pipe jacketing insulation aluminum coil roll

Flait Aluminum provides many types and specifications of aluminum insulation jacketing roll, which can be customized according to the needs, and the selection range is wide.

We have rich production experience, professional research and development, perfect after-sales system, reasonable configuration of production plan, fast production cycle and timely delivery. We are able to recommend the most suitable and cost-effective materials according to the needs, uses and usage environments of different customers.

Our quotation model is: Shanghai nonferrous metal price SMM + processing cost + transportation cost.

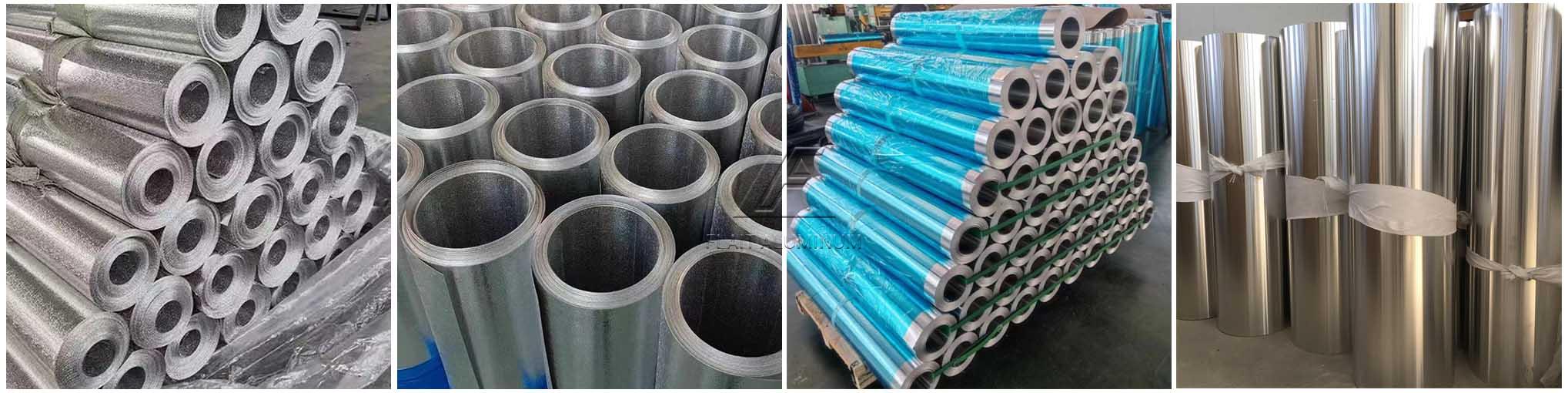

3003 H14 Pipe jacketing insulation aluminum coil roll
