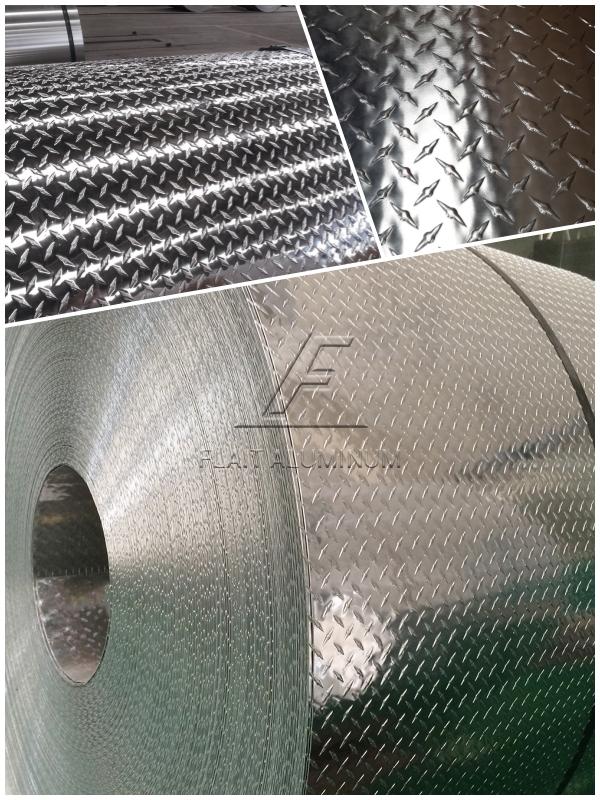

3003 Aluminum diamond tread sheet plate coil

2023-08-15 17:59:58

The diamond pattern aluminum plate is also called 1 bar/pointer aluminum plate, which is usually used for non-slip floors (such as factory floors, car floors, machine equipment steps, etc.), so it is also called anti-slip aluminum plate. The main products of patterned aluminum plate are: 1xxx series, 3xxx series, 5xxx series, 6xxx series aluminum alloy plates; with one bar, two bar, three bar, five bar checkered aluminum plates, etc.

3003 Aluminum diamond tread sheet plate coil belongs to Al-Mn alloy, also known as anti-rust aluminum plate. The aluminum content of the 3003 patterned aluminum plate is about 98%, and the manganese content can reach 1%, 3003 patterned aluminum plate is better than the 1 series aluminum plate in terms of anti-rust performance. The hardness and strength of 3003 aluminum plate are about 10% higher than 1100 aluminum plate and 1060 aluminum plate. The 3003 aluminum plate cannot be strengthened by heat treatment. Generally, the cold working method is used to improve the mechanical properties; it has high plasticity and good corrosion resistance in the annealed state. 3003 Aluminum diamond tread sheet plate coil is used for anti-slip, generally used in various fields such as ramps, stairs, anti-slip floors, and decorative panels.

Specification of 3003 aluminum diamond tread sheet plate coil
Alloy 3003
Temper H12,H22,H14,H24,H114,etc.
Thickness(mm) 1.5-6.35
Width(mm) 100-1850
Length(mm) 500-16000
Surface Bright finish, Mill finish
Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Height of bar 0.6mm-1.2mm
ID 508mm for coil
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer
Package Export package
Common order size 4x8ft, 5x10ft, 1200x2400mm, 1500x3000mm, 2000x4000mm


Advantages of 3003 Aluminum diamond tread sheet plate coil

  1. 3003 Aluminum diamond tread plate has strong plasticity, easy to form, and has excellent processing performance advantages.
  2. 3003 Aluminum diamond tread sheet is of medium strength, good corrosion resistance, wide application and wide application field.
  3. 3003 Aluminum diamond tread sheet plate has good mechanical properties and stable chemical composition, good quality and reasonable price.
  4. The surface quality of the 3003 aluminum tread checkered plate sheet is good, no oil spots, waves, scratches, roll marks, and the trimming is neat and burr-free.
  5. We can customize products according to your requirements.
  6. Provide free sample service.
