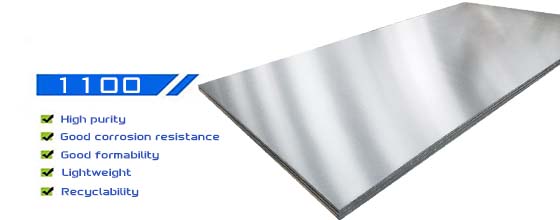

1100 aluminum sheet coil is 1000 series pure aluminum with an aluminum content of at least 99%. It has excellent corrosion resistance, electrical conductivity and thermal conductivity, and good formability, but low mechanical strength and cannot be strengthened by heat treatment.
It has some specific applications in automobile manufacturing, but its scope of use is relatively limited. It is mainly concentrated in some parts that do not require high strength but require good formability, corrosion resistance or conductivity. It is mainly used in the automobile manufacturing field in the form of 1100 O aluminum sheet.
| Alloy | 1100 aluminum sheet coil |
| Temper | O |
| Thickness(mm) | 0.30 – 3.50 |
| Width(mm) | 100 – 2400 |
| Length(mm) | 500 – 16000 |
| Standard | ASTM B209/EN 485/GB/T 33227-2016/JIS H4000 |
| Application | Radiator plate, component heat shield, etc. |
| Alloy | 1100 |
| Temper | O |
| Tensile Strength Rm(Mpa) | 88 |
| Yield Strength Rp0.2(Mpa) | 29 |
| Elongation at Break | 32% |
| Brinell Hardness | 23 |
◆ High purity: The purity of 1100 aluminum is more than 99.0%, with excellent electrical and thermal conductivity.
◆ Lightweight: Aluminum is a light metal, and 1100 aluminum has a low density, which can reduce the weight of the car itself and improve the fuel economy of the car.
◆ Good formability: 1100 O aluminum sheet has good ductility and can be processed by deep drawing, stretching, bending and other forming methods to make parts of different shapes.
◆ Good corrosion resistance: The surface of 1100 aluminum can be treated by anodizing and other methods to improve its corrosion resistance, thereby ensuring the long-term service life of the parts.
◆ Recyclability: Aluminum is a recyclable material that can reduce environmental pollution and conform to the concept of environmental protection.
Radiator plate: 1100 aluminum sheet has good thermal conductivity and can be used as a radiator chip or radiator plate to dissipate heat from the car engine, transmission or drive system to keep the engine and other systems running at the appropriate temperature. Heat shield: 1100 aluminum alloy is used to make automotive heat shields. Due to its excellent thermal conductivity and corrosion resistance, it can effectively isolate heat and protect other components Exhaust pipe protection cover: Used as an exhaust pipe protection cover to protect other components from the high temperature of the exhaust pipe.
