Types of 5052 aluminum tread checkered plates

2023-11-20 10:56:44

Types of 5052 aluminum tread checkered plates

1.5052 five bars patterned aluminum plate is the most widely used in the anti-slip aluminum plate series. The thickness of the patterned bottom plate can be as thin as 0.9mm, and the pattern height is about 0.6mm. The width of the patterned aluminum plate can be customized according to customer requirements. The commonly used size are 1250*2500, 1500*3000, etc.

2.5052 diamond/pointer type pattern aluminum plate, the pattern is like a compass, and its application is less than that of five bars aluminum alloy pattern plate.

Advantages of 5052 aluminum tread checkered plates

Advantages of 5052 aluminum tread checkered plates

5052 aluminum tread checkered plates is the most commonly used five bars pattern aluminum plate. It belongs to the aluminum-magnesium alloy pattern aluminum plate. It has high hardness, strong corrosion resistance and good anti-rust effect. Magnesium alloy is added to 5052 aluminum tread checkered plates during the processing, and the content can reach 2.5 % or above, it has good corrosion resistance and anti-rust properties, can be well adapted to high-strength, high-corrosion-resistant occasions, and is widely used in ships, vehicles, and working platforms.

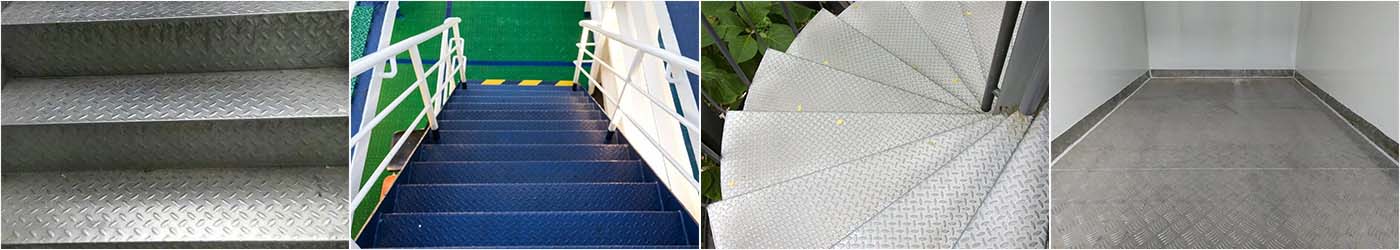

Application of 5052 aluminum tread checkered plates

5052 pattern aluminum plate has a high surface finish and good decorative properties. It is used for anti-skid floors, work platforms, foot pedals, carriages, ship bottoms, etc.

Specification of 5052 aluminum tread checkered plates

Alloy 5052
Temper O,H22,H32,H114
Thickness 1.1mm-10.0mm
Width 600mm-1500mm
Length up to 11000mm for sheet
ID 508mm for coil
Height of bar Min 0.6mm for thickness 1.1mm to 2.0mm,5.0mm to 6.0mm;
Min 0.8mm for thickness 2.0mm to 10.0mm.
Surface Mirror surface, matte surface
Pattern type a. Big five bars aluminum checkered plate;
b. Small five bars aluminum tread plate;
c. Aluminum diamond plate, one bar or pointer aluminum tread plate;
d. Two bars aluminum chequered plate;
e. Three bars aluminum checkered plate.
Common specifications 5052-h114 pattern aluminum plate, 5052-O pattern aluminum plate;1250*2500, 1500*3000, can be customized;

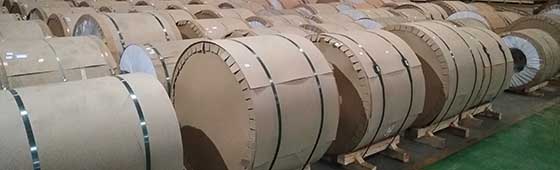

Packaging of 5052 aluminum tread checkered coil

Packaging of 5052 aluminum tread checkered coil
  • Each coil to be securely tied with two bands;
  • the contact points of these bands on the coil edge to be protect with edge protectors;
  • Coil then to be properly wrapped with plastic film, woven belt, resistant paper;
  • Wooden or iron pallet can be used or as your requirements

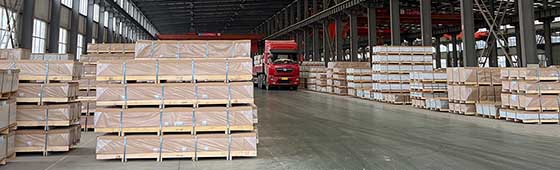

Packaging of 5052 aluminum tread checkered plate

Packaging of 5052 aluminum tread checkered plate
  • The package of 5052 aluminum diamond sheet meet the export standard;
  • Plastic film and brown paper can be covered at customers’ need;
  • Paper interleaf each piece;
  • Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
