Common classification and use of aluminum tread checkered plate

2023-07-25 17:05:20

The aluminum tread checkered plate is the surface of the aluminum alloy plate that undergoes various treatments to present different tread checkereds. According to the needs of different purposes and decorative effects, it can be processed into a series of products with different thicknesses and colors. It not only retains the excellent characteristics of ordinary aluminum alloy materials, but also has some special properties.

The following are the specific categories and uses:

According to the different classification of aluminum plate alloy


  1. Ordinary aluminum tread checkeredplate: the aluminum tread checkeredplate processed with 1060 aluminum plate as the base can adapt to the ordinary environment and is cheap. Usually cold storage, flooring, and outer packaging use this kind of tread checkereded aluminum sheet.
  2. Aluminum-manganese alloy tread checkeredplate: processed with 3003 as the main raw material, this kind of aluminum plate is also called anti-rust aluminum plate, its strength is slightly higher than that of ordinary aluminum alloy tread checkeredplate, and it has certain anti-rust performance, but its hardness and corrosion resistance are not as good as the 5000 series tread checkered plate, so this product is used in rust-proof aspects that do not require strict requirements, such as truck models, cold storage floors, etc.
  3. Aluminum-magnesium alloy tread checkeredplate: It is processed from 5000 series aluminum plate such as 5052 or 5083, which has good corrosion resistance, hardness and anti-rust performance. It is usually used in special places, such as ships, car lights, and humid environments. This kind of aluminum plate has high hardness and has a certain load-bearing capacity.


According to the different classification of aluminum plate tread checkered

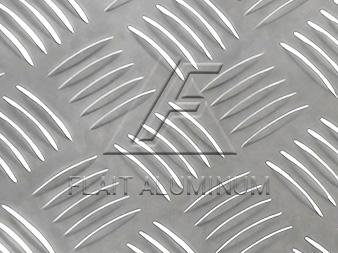

  1. 5 bars aluminum tread checkeredplate: 5 barsnon-slip aluminum plate is also called willow-shaped tread checkered plate. It has good anti-skid ability and is widely used in the design of construction (floor) platforms. Since the tread checkereds on the surface of the aluminum plate are arranged in parallel according to the five concave-convex tread checkereds, and the angle between each tread checkered and other tread checkereds is 60-80 degrees, this tread checkered has excellent anti-slip performance and is cheap.
  2. 1 bar aluminum checkered plate: also known as compass aluminum alloy checkered plate, non-slip aluminum plate, which has the same effect as five-rib aluminum alloy checkered plate, but it is not commonly used.
  3. Orange peel aluminum alloy tread checkeredplate is divided into: classic orange peel tread checkeredaluminum plate, variation orange peel tread checkered aluminum plate (also known as insect tread checkered). Its surface presents a tread checkered similar to orange peel, so it can also be called orange peel tread checkered aluminum plate. It is a checkered plate product commonly used in refrigerators, air conditioners and packaging.
  4. The lentil-shaped tread checkeredaluminum plate is a commonly used style of anti-skid aluminum plate. It has good anti-skid effect and is mainly used for carriage, platform anti-skid, cold storage floor anti-skid, workshop floor anti-skid, and elevator anti-skid.
  5. The spherical tread checkeredaluminum sheet can also be called semi-spherical tread checkeredaluminum sheet. The surface presents a small spherical tread checkered, like a small pearl, so this aluminum sheet can also be a pearl-shaped tread checkered aluminum sheet. Mainly used in outer packaging. The appearance is more beautiful. Due to the special tread checkered, the strength of this aluminum plate is much higher than other tread checkered series.

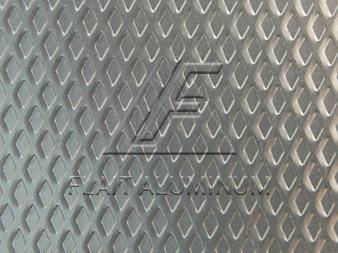

  6. Diamond-shaped aluminum tread checkeredplate: commonly used for packaging pipes or outer packaging.
  7. Other tread checkereded aluminum plates: corrugated tread checkereded plate, water corrugated aluminum tread checkereded plate, corrugated aluminum tread checkered plate(also can be aluminum tile), rattan tread checkereded aluminum plate, three-dimensional triangular aluminum tread checkereded plate, striped tread checkereded aluminum plate, cobblestone aluminum tread checkereded plate, tread checkereded aluminum tread checkereded plate, triangular striped tread checkereded aluminum plate, butterfly tread checkereded aluminum plate, etc.

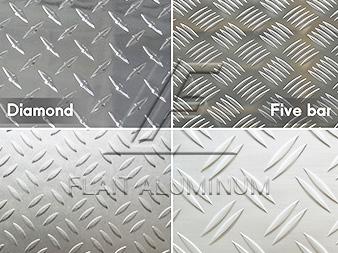

5 bar aluminum checker plate Diamond-shaped aluminum tread checkered plate
