5086 H111 marine grade aluminum plate for ship side deck

2023-10-16 10:48:57

Ship side decks are often exposed to harsh marine environments, and 5086 H111 aluminum plate serves as a marine grade rust-proof aluminum. 5086 H111 aluminum plate has high resistance to corrosion caused by seawater and is widely used in ship hull structures and decks, ship sides, and bottom outer plates. Our company has advanced production, mature technology, and good pre-sales and after-sales services. Welcome to buy.

5086 H111 aluminum plate provides the necessary strength for the shipside deck while keeping the weight of the entire ship under control. 5086 H111 aluminum plate is known for its excellent weldability, making welding and repair work easy. This is important for shipbuilding applications, as welding is one of the commonly used techniques. While 5086 H111 aluminum plate may not be as easy to machine as some other aluminum grades, it can still be effectively cut, drilled, or shaped to design requirements using the correct tools and procedures.

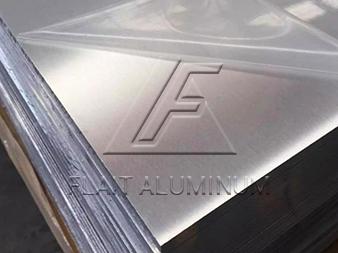

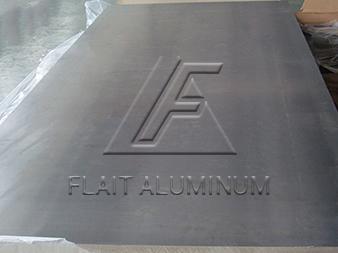

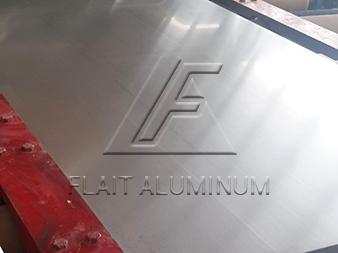

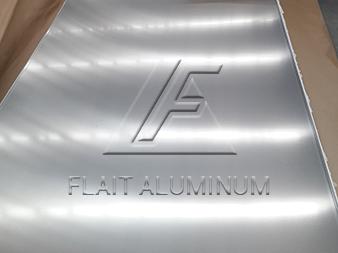

5086 H111 marine grade aluminum plate for ship side deck 5086 H111 marine grade aluminum plate for ship side deck 5086 H111 marine grade aluminum plate for ship side deck

Specification of 5086 H111 Marine Grade Aluminum Plate for Ship Side Deck

Alloy 5086
Temper O,H111,H112,H116,H321
Thickness (mm) 1.50-120
Width (mm) ≤3100
Length (mm) 1000-16000
Certification DNV, GL, ABS, CCS, BV, LR

Chemical Composition

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Al
5086 0.40 0.50 0.10 0.20-0.70 3.50-4.50 0.05-0.25 0.25 0.15 Remainder

Mechanical Properties

Alloy Temper Tensile strength Rm(Mpa) Yield strength Rp0.2(MPa) Elongation A(%)
5086 O/H111/H112 ≥275 ≥125 ≥16


Advantages of 5086 Aluminum Plate

5086 aluminum plate has high strength and durability to withstand harsh marine conditions such as high winds and rough seas, which is crucial for ship construction. 5086 aluminum plate excels in maritime applications due to its excellent resistance to salt water corrosion. This means ships with decks made from this material are less likely to deteriorate from exposure to salty ocean air and water, requiring less maintenance.

5086 aluminum sheets are very easy to weld and retain most of their mechanical strength, resulting in a reliable and strong structure. The high durability of 5086 aluminum plate provides the vessel with a longer service life, reducing the need for repeated replacement or repairs. Unlike steel, aluminum is not magnetic. This makes it more suitable for ships that may be involved in operations requiring low magnetic characteristics, such as naval vessels.

Original Source: https://www.flait-aluminum.com/Marine-grade-aluminum-sheet.html

Tags: 5086 aluminum plate
